2m IP65 Cast Aluminum Ultrasonic Level Transmitter

Name: 2m IP65 Cast Aluminum Ultrasonic Level Transmitter
Brand: HCATM
Price: 1 USD

Wholesale 2m IP65 Cast Aluminum Ultrasonic Level Transmitter from china suppliers

Brand Name : HCATM

Model Number : GML601-D

Certification : CE，RoHs

Place of Origin : Xi'an

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram，Paypal

Supply Ability : 10000 pieces per month

Delivery Time : 3-5 days

Packaging Details : Packed in cardboard or wooden cases

Range : 2m, 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m, 35m, 40m (selected when ordering)

Dead zone : <0.25-2m (different from range)

Launch angle : Less than 12 ° (different from sensor)

Ranging accuracy : ± 0.3% F.S

Display : LED, LCD, OLED Chinese and English menu with self-illumination (optional)

Minimum display resolution : 1mm

Contact Now

GML601-D

Cast Aluminum Ultrasonic Level Transmitter

GML601-D cast aluminum ultrasonic level transmitter is a general-purpose ultrasonic level meter developed and manufactured by our company based on many years of application experience. It draws on its strengths and draws on the advantages of various level gauges at home and abroad. Realized the all-digital and humanized design concept, becoming our company's upgraded high-end products. The shell adopts cast aluminum waterproof shell, and adopts international electrical interface. Standard wiring terminals are convenient for construction and installation; transparent observation windows allow more convenient level data observation. With perfect material / liquid level measurement and control, data transmission and human-machine communication functions. The main chip uses dozens of related application-specific integrated circuits such as imported industrial-grade single chip microcomputers, digital temperature compensation, and ultra-wide voltage input voltage stabilization. It has strong anti-interference, can set the upper and lower limit nodes arbitrarily, online output adjustment, with on-site display. Can choose analog quantity, switch quantity and RS485 output, convenient to interface with related facilities. It has high reliability. No pollution. Stable performance. It can meet most of the liquid level and material level measurement requirements without touching the industrial medium.

It completely solves the shortcomings of entanglement, blockage, leakage, medium corrosion and inconvenience caused by traditional measurement methods such as pressure, capacitance, and float. Therefore, it can be widely used in various fields related to material level and liquid level measurement and control. This product has been inspected and approved by the national authority. This product complies with the national standard requirements of GB3836.1-2010 and GB3836.4-20010. The explosion-proof mark is Exia II BT4Gb.

Performance
Range	2m, 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m, 35m, 40m (selected when ordering)
Dead zone	<0.25-2m (different from range)
Launch angle	Less than 12 ° (different from sensor)
Ranging accuracy	± 0.3% F.S
Display	LED, LCD, OLED Chinese and English menu with self-illumination (optional)
Minimum display resolution	1mm
Temperature compensation	Automatic temperature compensation
Site setup	Completed by the level / level meter button
Frequency	20KHZ-2000KHZ
Output (selected when ordering)
Analog signal output	4~20mA (standard configuration) ; 0~20mA ; 0~5V ; 0~10V load> 300Ω
Digital communication	RS485 (supports Modbus)
Switch output	Two NP
Power
Operating Voltage	AC220V or DC12-24V
Power consumption	<1.5W
Physical properties
Shell material	Cast aluminum
Sensor material	ABS / nylon
Electrical Interface	M20X1.5 (two groups)
Keypad	Three-position patch A, B, C button
Dimensions	Φ79mm × 210mm × G1 1/2 (2m range)
	Φ79mm × 223mm × M60 (5m-15m range)
	Φ79mm × 270mm × DN80 non-standard flange (20m-40m range)
Installation method	G1 1/2 or ￠47mm round hole with large gong ring (2m range)
	M60 × 2 or￠61mm round hole with large gong ring (5m-15m range)
	DN80 non-standard flange (20m-40m range)
Environmental performance
Protection class	IP65 (customizable higher protection level)
Explosion-proof grade	EXia II BT4Gb (selected when ordering)
Working environment	Temperature and pressure
Storage humidity	≤80% RH without condensation

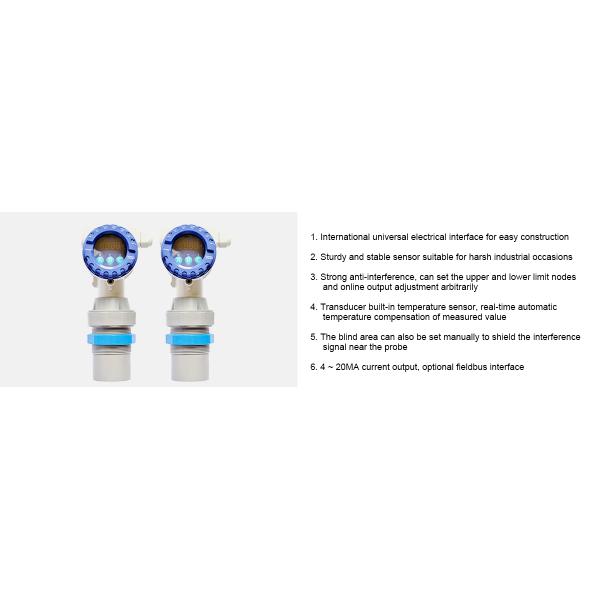

Product Features
